| Model Number: | A12 Pro |
| MOQ: | 1 |
| Price: | contact us or Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 20 sets per Month |

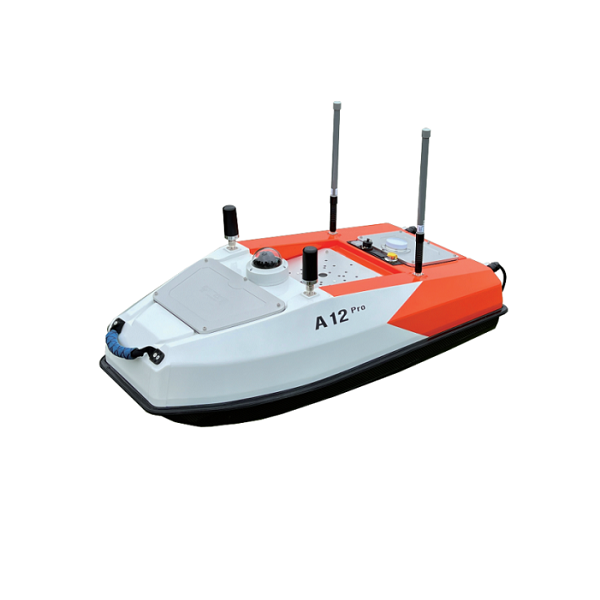

The A12 Pro is a professional unmanned surface vehicle engineered for hydrographic surveying and environmental data collection. It is compatible with mainstream navigation ADCPs, single-beam echo sounders, water quality analyzers, and water sampling equipment.
Its 235 mm instrument well allows fast installation and replacement of different survey payloads, providing excellent flexibility for a wide range of field applications.
The carbon fiber and Kevlar composite hull delivers high strength with low weight, while the flush-bottom design improves stability and enables operation in shallow water.
Integrated autonomous navigation, onboard data storage, HD video transmission, and 4G communication ensure efficient survey operations with reliable data management.
|
Compact hull Easily transport Thicken bottom Particularly wear-resistant |
|
|
Monitor and sampling free switching Flow velocity and depth carried simultaneously |
|
|
4G transmission long distance Date storage prevent loss |
|
|
HD video real-time transmission Camera to take pictures smart key to start |
|
235mm through hole design, can be equipped with the mainstream navigation ADCP on the market, plug and play, easy installation. Water quality sampling or water quality monitoring equipment can be switched.
Equipped with special depth sounder for unmanned ship, data internal storage,remote control to check the measurement status in real time, transducer and thruster flush with the bottom of the ship, suitable for terrain survey in 0.15-300m waters.
|
Depth sounding system |
Automatic running |
Data achievement |
|
Deepth Sounder:Equipped with self-storage function and equipped with autonomous navigation system of unmanned ship, it realizes efficient and convenient measurement and meets the needs of surveying. |
||
|
3M velocity of flow |
RiverRay Data |
M9 Data |
|
ADCP:Large unit opening design, suitable for multiple types of ADCP; Maximum 3m/s top flow capacity to meet the needs of harsh environments. |
||
|
Sampling module |
Online sampling |
Online monitoring |
|
Deepth Sounder:The water quality analyzer and water quality sampling equipment can be changed with use, supporting real-time data transmission, cloud data backup, and offline download. |
||
|
BOAT |
Size(mm) |
1100*580*320 |
|
Weight |
14KG |
|
|
Hull Material |
Kevlar & carbon fiber high-strength composite |
|
|
Hull Design |
Catamaran |
|
|
Stability |
Grade 3 wind and grade 2 waves |
|
|
SAILING PERFORMANCE |
Duration |
6 hours on 2m/s speed, with removable battery |
|
Max Speed |
7m/s |
|
|
Engine |
2 Culvert brushless DC propellers |
|
|
Propeller |
Electric driven |
|
|
Direction System |
Differential Steering |
|
|
SAFETY SYSTEM |
Avoidance |
Video-aid manual avoidance or sonar(optional) |
|
Video Stream |
High resolution |
|
|
Auto Return |
Auto return when low power or disconnected |
|
|
ASHORE SYSTEM |
OS |
Windows/Android |
|
Communication Type |
Realtime P2P connection or 4G wireless |
|
|
Range |
4G:unlimited, Controller :3km |
|
|
Navigation Mode |
Manual/Automatic |
|
|
CONTROLLER |
Communication |
Realtime P2P connection |
|
Range |
2km |
|
|
Screen Size |
7 inch high resolution display |
|
|
Ingress Rating |
IP67 |
|
|
Function |
Work mode swtiching in realtime Speed and direction contro |
|
|
ADCP |
Hole Size |
Diameter 235 mm |
|
Instrument Type |
NavigationADCP |
|
|
SINGLEBEAM ES |
Deep Range |
0.15– 300 m |
|
Accuracy |
1 cm ± 0.1% *Deepth |
|
|
Storage and I/O |
Datastorage 16G internal/Data trasmit:RS232 |
|
|
Display |
LCD,Resolution128 x 64 |
