H12 Pro All In One GNSS Receiver Multi Constellation For High Precision Surveying

Name: H12 Pro All In One GNSS Receiver Multi Constellation For High Precision Surveying
Brand: Wuhan Tianbaonet Sci & Tec Co.,Ltd
SKU: H12 Pro GNSS Receiver
Availability: InStock

Place of Origin:China

Brand Name:TBNET

Certification:CE

Model Number:H12 Pro GNSS Receiver

Minimum Order Quantity:1

Price:Contact us

Payment Terms:T/T

Supply Ability:100 Sets/ Month

H12PRO GNSS Receiver.pdf

PDF

Product Details

Highlight:

GNSS Receiver With IMU Module

High Precision Surveying GNSS Receiver

Linux OS Powered GNSS Receiver

Single Point Positioning Accuracy: Horizontal: 1.5m ; Vertical: 2.5m

RTK Accuracy (RMS): Horizontal: 8 Mm + 1 Ppm; Vertical: 15 Mm + 1 Ppm

Static Accuracy (RMS): Horizontal: 2.5 Mm + 0.5 Ppm; Vertical: 5 Mm + 0.5 Ppm

Weight: 1.03 Kg

Type: GNSS Receiver

Product Description

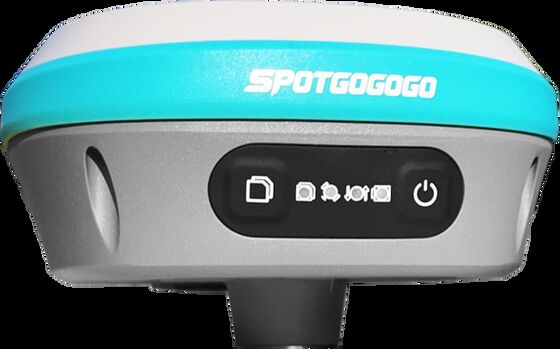

H12 Pro All-in-One GNSS Receiver
Compact, Intelligent, and Built for High-Precision Surveying

Why Choose the H12 Pro GNSS Receiver

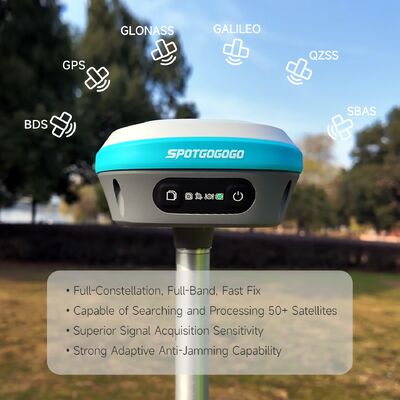

The H12 Pro GNSS Receiver offers exceptional high-precision performance with full-constellation GNSS support and automatic tilt compensation. Powered by a Linux OS, it features voice prompts, a WEBUI interface, Wi-Fi connectivity, Type-C fast charging, and SIM card support—providing versatile and reliable connectivity for demanding field applications.

Tilt Compensation for Hard-to-Reach Measurements

Driven by the advanced NebulasIV GNSS SoC, which integrates RF, baseband, and sophisticated positioning algorithms, the H12 Pro tracks over 40 satellites, ensuring reliable performance even in challenging environments. The built-in IMU module requires no calibration and provides tilt-compensated measurements with up to 2.5 cm accuracy at tilt angles of up to 30°, all with a simple initialization process.

All-In-One Integrated Design

This comprehensive receiver combines Bluetooth, UHF Radio, Wi-Fi, Internal Storage, GNSS Positioning, an IMU for Tilt Compensation, and a GSM Module—all in one compact, professional device. It supports seamless switching between Base and Rover modes, offering maximum flexibility for various field deployment scenarios.

Linux-Based Operating System

Easily access and configure your device using the built-in web interface. Simply open a browser to view the system status and adjust settings. The intuitive design ensures smooth connectivity, while advanced voice prompts and built-in self-diagnostic functions simplify operation and maintenance.

Technical Specifications

Accuracy Indicators	Signal Tracking	Initialization Performance
Single Point Positioning Accuracy Horizontal: 1.5m Vertical: 2.5m RTK Accuracy (RMS) Horizontal: 8 mm + 1 ppm Vertical: 15 mm + 1 ppm Static Accuracy (RMS) Horizontal: 2.5 mm + 0.5 ppm Vertical: 5 mm + 0.5 ppm Velocity Accuracy 0.03 m/s	BDS B1I / B2I / B3I / B1C / B2a / B2b GPS L1 C/A, L1C, L2C, L2P(Y), L5 GLONASS G1, G2, G3 Galileo E1, E5a, E5b, E6 QZSS L1 C/A, L1C, L2C, L5, L6 NavIC L5 SBAS L1 C/A	Cold Start Time < 12 seconds Typical Initialization Time < 5 seconds RTK Initialization Reliability > 99.9% Reacquisition Time < 1 second
Physical Performance	Electrical Parameters	Data Interfaces
Operating Temperature -45°C to +75°C Storage Temperature -55°C to +85°C Dimensions Φ140mm x 141mm Ingress Protection IP67 Drop Resistance Withstands drops of up to 2 meters Buttons 2 buttons Indicators 4 LED indicators Humidity Resistance 100% non-condensing Weight 1.03 kg	Power Consumption Rover: ≤2.0W Base Station: ≤2.2W Battery Life Rover: ≥20h Base Station: ≥15h Battery Capacity 10,000 mAh Input Voltage 9-36 V DC Radio Frequency Range 410-470 MHz Radio Transmission Power 0.5 W / 1.5 W Internal Storage 32 GB	Update Rate Default 1 Hz, configurable up to 20 Hz Physical Interfaces USB Type-C, SIM card slot, TNC connector Wireless Connectivity Bluetooth 4.1 (backward compatible with BT 2.x) Wi-Fi: IEEE 802.11 a/b/g/n
Data Output & Inertial Measurement
Differential Data RTCM 3.x Positioning Data NMEA 0183 Static Data Proprietary binary format	Tilt Angle Range 0-60° Tilt Compensation Accuracy ≤ 2.5 cm (within 30° tilt)

Product Summary

H12 Pro All-in-One GNSS Receiver Compact, Intelligent, and Built for High-Precision Surveying Why Choose the H12 Pro GNSS Receiver The H12 Pro GNSS Receiver offers exceptional high-precision performance with full-constellation GNSS support and automatic tilt compensation. Powered by a Linux OS, it ...
