| Model Number: | A12 Pro |
| MOQ: | 1 |
| Price: | contact us or Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 20 sets per Month |

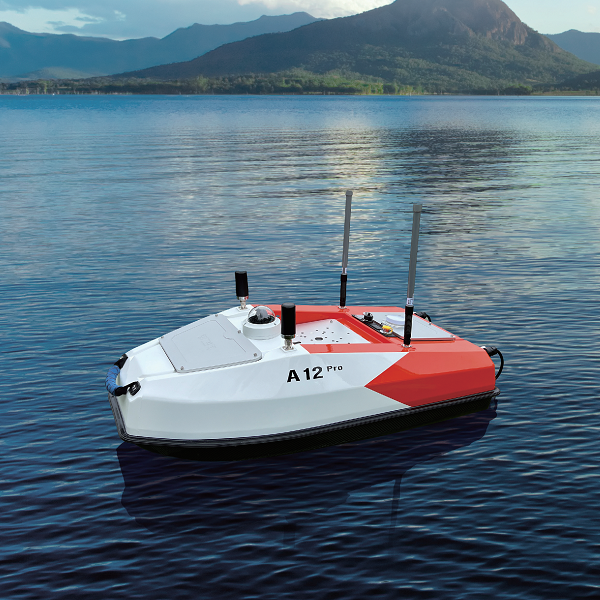

A12 Pro Multi-function USV
FAST SPEED STABLE ATTITUDE LONG ENDURANC
Introduction
The A12 Pro multifunctional unmanned ship is a new generation of intelligent unmanned ship designed for carrying ADCP, depth sounder, water quality monitoring and other sensors. A12 Pro multifunctional unmanned ship, its bottom is basically flush, sailing speed, stable attitude, long endurance.
The hull is made of carbon fiber and Kevlar bulletproof cloth, and the bottom is equipped with wear-resistant structural parts, which is light in weight, high in strength, and easy to transport and release. Greatly reduce the number of field personnel, improve work efficiency, to meet the requirements of various harsh environments.
Features
|
Compact hull Easily transport Thicken bottom Particularly wear-resistant |
|
|
Monitor and sampling free switching Flow velocity and depth carried simultaneously |
|
|
4G transmission long distance Date storage prevent loss |
|
|
HD video real-time transmission Camera to take pictures smart key to start |
|
Onboard System
235mm through hole design, can be equipped with the mainstream navigation ADCP on the market, plug and play, easy installation. Water quality sampling or water quality monitoring equipment can be switched.
Equipped with special depth sounder for unmanned ship, data internal storage,remote control to check the measurement status in real time, transducer and thruster flush with the bottom of the ship, suitable for terrain survey in 0.15-300m waters.
Achievement
|
Depth sounding system |
Automatic running |
Data achievement |
|
Deepth Sounder:Equipped with self-storage function and equipped with autonomous navigation system of unmanned ship, it realizes efficient and convenient measurement and meets the needs of surveying. |
||
|
3M velocity of flow |
RiverRay Data |
M9 Data |
|
ADCP:Large unit opening design, suitable for multiple types of ADCP; Maximum 3m/s top flow capacity to meet the needs of harsh environments. |
||
|
Sampling module |
Online sampling |
Online monitoring |
|
Deepth Sounder:The water quality analyzer and water quality sampling equipment can be changed with use, supporting real-time data transmission, cloud data backup, and offline download. |
||
Specifications
|
BOAT |
Size(mm) |
1100*580*320 |
|
Weight |
14KG |
|
|
Hull Material |
Kevlar & carbon fiber high-strength composite |
|
|
Hull Design |
Catamaran |
|
|
Stability |
Grade 3 wind and grade 2 waves |
|
|
SAILING PERFORMANCE |
Duration |
6 hours on 2m/s speed, with removable battery |
|
Max Speed |
7m/s |
|
|
Engine |
2 Culvert brushless DC propellers |
|
|
Propeller |
Electric driven |
|
|
Direction System |
Differential Steering |
|
|
SAFETY SYSTEM |
Avoidance |
Video-aid manual avoidance or sonar(optional) |
|
Video Stream |
High resolution |
|
|
Auto Return |
Auto return when low power or disconnected |
|
|
ASHORE SYSTEM |
OS |
Windows/Android |
|
Communication Type |
Realtime P2P connection or 4G wireless |
|
|
Range |
4G:unlimited, Controller :3km |
|
|
Navigation Mode |
Manual/Automatic |
|
|
CONTROLLER |
Communication |
Realtime P2P connection |
|
Range |
2km |
|
|
Screen Size |
7 inch high resolution display |
|
|
Ingress Rating |
IP67 |
|
|
Function |
Work mode swtiching in realtime Speed and direction contro |
|
|
ADCP |
Hole Size |
Diameter 235 mm |
|
Instrument Type |
NavigationADCP |
|
|
SINGLEBEAM ES |
Deep Range |
0.15– 300 m |
|
Accuracy |
1 cm ± 0.1% *Deepth |
|
|
Storage and I/O |
Datastorage 16G internal/Data trasmit:RS232 |
|
|
Display |
LCD,Resolution128 x 64 |
