H16PRO High Precision GNSS Receiver Multifunctional Positioning Device For Surveying

Place of Origin:China
Brand Name:TBNET
Certification:CE
Model Number:H16 Pro
Minimum Order Quantity:1set
Price:contact us
Payment Terms:T/T
Supply Ability:50 sets per Month
Product Details
Highlight:

Multifunctional High Precision GNSS Receiver

,

GNSS Receiver Device For Surveying
Single Point Positioning: Horizontal: 1.5 M ; Vertical: 2.5 M
RTK Accuracy (RMS): Horizontal: 8 Mm + 1 Ppm ; Vertical: 15 Mm + 1 Ppm
Static Accuracy (RMS): Horizontal: 2.5 Mm + 0.5 Ppm ; Vertical: 5 Mm + 0.5 Ppm
Product Description

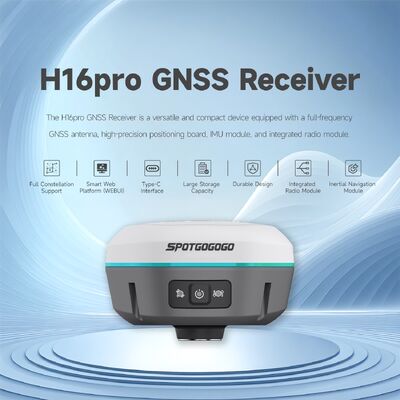

H16 Pro GNSS Receiver
The H16PRO GNSS Receiver is a compact and multifunctional positioning device designed for high-precision surveying. It integrates a full-frequency GNSS antenna, advanced positioning board, IMU sensor, and built-in radio module within a lightweight body. Supporting both rover and base station modes, the H16PRO delivers reliable accuracy while maintaining low power consumption. Its portable and user-friendly design makes it well suited for a wide range of field applications.
Key Features
Full Constellation Support
Receives signals from all major satellite systems (BDS, GPS, GLONASS, Galileo, QZSS)
Smart Web Platform
Accessible via mobile devices over Wi-Fi for device status and configuration
IMU Module
Enables quick calibration with 2.5 cm tilt compensation accuracy within 30° range
Type-C Interface
Standardized connection for fast data transfer and convenient charging
Durable Design
IP67-rated for water/dust resistance and withstands 2-meter drops
Integrated Radio Module
Supports multiple protocols with transmission range up to 7 km
Large Storage Capacity
32 GB internal storage for real-time data logging and job file management
Performance Benefits
  • High Precision: Centimeter-level accuracy for precise measurements in various environments
  • User-Friendly: Intuitive web interface and mobile connectivity for easy operation
  • Multi-System Compatibility: Enhanced reliability and signal stability through multiple satellite constellations
  • Extended Battery Life: Long-lasting battery ensures continuous operation over extended periods
Technical Specifications
Accuracy Indicators Physical Parameters Electrical Parameters
Single Point Positioning:
Horizontal: 1.5 m
Vertical: 2.5 m
RTK Accuracy (RMS):
Horizontal: 8 mm + 1 ppm
Vertical: 15 mm + 1 ppm
Static Accuracy (RMS):
Horizontal: 2.5 mm + 0.5 ppm
Vertical: 5 mm + 0.5 ppm
Speed Accuracy:
0.03 m/s
Operating Temperature:
-40°C to +60°C
Storage Temperature:
-55°C to +75°C
Dimensions:
Ф99.7 mm * 95.4 mm * 63.1 mm
Protection Level:
IP67
Impact and Vibration:
Resistant to 2 m drop
Weight:
430g
Humidity:
95% non-condensing
Power Consumption:
≤3.0W
Battery Life:
≥15h (Rover), ≥7h (Base)
Radio Frequency:
410~470MHz
Input Voltage:
5V 2V
Battery Capacity:
4000 mAh
Radio Power:
1W/1.5W
Storage Capacity:
32 GB
Signal Tracking Capabilities
  • BDS: B1I / B2I / B3I / B1C / B2a / B2b
  • GPS: L1C / A / L2P(Y) / L2C / L5
  • GLONASS: G1 / G2 / G3
  • Galileo: E1 / E5a / E5b / E6
  • QZSS: L1 / L2 / L5
Data Output & Initialization
  • Differential Data: RTCM 3.X
  • Positioning Data: NMEA-0183
  • Static Data: Binary
  • Inertial Measurement: Tilt Angle: 0-60°
  • Cold Start: <12 s
  • Initialization: <5 s (typical)
  • RTK Initialization Reliability: >99.9%
  • Reacquisition Time: <1 s
Core Applications
H16PRO High Precision GNSS Receiver Multifunctional Positioning Device For Surveying 0
SURVEYING
H16PRO High Precision GNSS Receiver Multifunctional Positioning Device For Surveying 1
PRECISION AGRICULTURE
H16PRO High Precision GNSS Receiver Multifunctional Positioning Device For Surveying 2
MINING AND CONSTRUCTION
Product Summary

H16 Pro GNSS Receiver The H16PRO GNSS Receiver is a compact and multifunctional positioning device designed for high-precision surveying. It integrates a full-frequency GNSS antenna, advanced positioning board, IMU sensor, and built-in radio module within a lightweight body. Supporting both rover ...
