H12 Pro High Precision IMU GNSS Receiver Tilt Compensation Full Constellation Tracking

Name: H12 Pro High Precision IMU GNSS Receiver Tilt Compensation Full Constellation Tracking
Brand: Wuhan Tianbaonet Sci & Tec Co.,Ltd
SKU: H12 Pro GNSS Receiver
Availability: InStock

Place of Origin:China

Brand Name:TBNET

Certification:CE

Model Number:H12 Pro GNSS Receiver

Minimum Order Quantity:1

Price:Contact us

Payment Terms:L/C,T/T

Supply Ability:100 Sets/ Month

H12PRO GNSS Receiver.pdf

PDF

Product Details

Highlight:

GNSS Receiver for demanding surveying

Full Constellation Tracking GNSS Receiver

Automatic Tilt Compensation GNSS Receiver

Single Point Positioning Accuracy: Horizontal: 1.5m ; Vertical: 2.5m

RTK Accuracy (RMS): Horizontal: 8 Mm + 1 Ppm; Vertical: 15 Mm + 1 Ppm

Static Accuracy (RMS): Horizontal: 2.5 Mm + 0.5 Ppm; Vertical: 5 Mm + 0.5 Ppm

Weight: 1.03 Kg

Applications: Demanding Surveying And Positioning

Product Description

H12 Pro High-Precision IMU GNSS Receiver
Advanced Tilt Compensation and Full-Constellation Tracking

Why Choose the H12 Pro GNSS Receiver

The H12 Pro GNSS Receiver is a high-performance, precision device designed for demanding surveying and positioning applications. With full GNSS constellation support and automatic tilt compensation, it ensures exceptional accuracy in challenging field conditions. Featuring a Linux-based OS, voice prompts, a WEBUI interface, Wi-Fi connectivity, Type-C fast charging, and SIM card support, the H12 Pro provides seamless and reliable connectivity for a wide range of tasks.

Advanced Tilt Compensation for Difficult Measurements

Equipped with the powerful NebulasIV GNSS SoC, the H12 Pro integrates advanced RF, baseband, and positioning algorithms to track over 40 satellites, ensuring reliable performance in complex environments. The IMU module allows for tilt compensation with up to 2.5 cm accuracy at tilt angles of up to 30°, with no need for calibration—just simple initialization for efficient operation.

All-in-One, Compact Design

The H12 Pro integrates all the essential components for a complete solution: Bluetooth, UHF Radio, Wi-Fi, Internal Storage, GNSS Positioning, and IMU-based tilt compensation, plus a GSM Module—all packed into a single, compact device. It’s designed for flexibility, allowing seamless switching between Base and Rover modes to suit different field requirements.

Easy Configuration with Linux OS

Configuring and monitoring the H12 Pro is simple with its Linux-based operating system. Users can easily access system status and adjust settings via a built-in web interface on any browser. With voice prompts and self-diagnostic functions, the device ensures ease of use and reliable operation with minimal maintenance.

Technical Specifications

Accuracy Indicators	Signal Tracking	Initialization Performance
Single Point Positioning Accuracy Horizontal: 1.5m Vertical: 2.5m RTK Accuracy (RMS) Horizontal: 8 mm + 1 ppm Vertical: 15 mm + 1 ppm Static Accuracy (RMS) Horizontal: 2.5 mm + 0.5 ppm Vertical: 5 mm + 0.5 ppm Velocity Accuracy 0.03 m/s	BDS B1I / B2I / B3I / B1C / B2a / B2b GPS L1 C/A, L1C, L2C, L2P(Y), L5 GLONASS G1, G2, G3 Galileo E1, E5a, E5b, E6 QZSS L1 C/A, L1C, L2C, L5, L6 NavIC L5 SBAS L1 C/A	Cold Start Time < 12 seconds Typical Initialization Time < 5 seconds RTK Initialization Reliability > 99.9% Reacquisition Time < 1 second
Physical Performance	Electrical Parameters	Data Interfaces

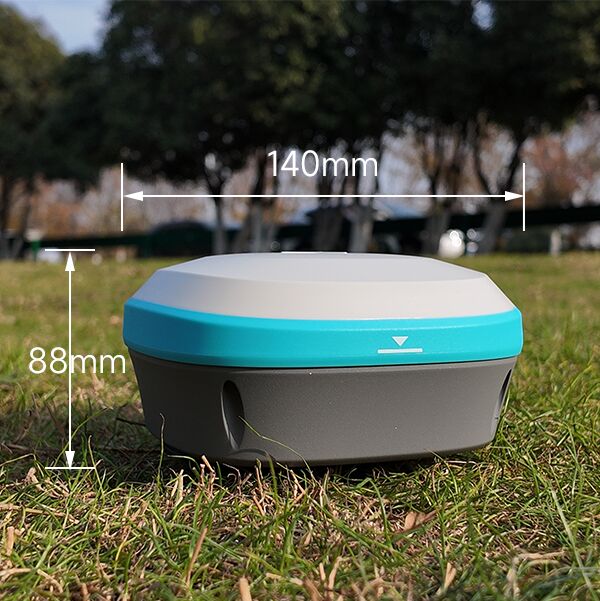

Operating Temperature -45°C to +75°C Storage Temperature -55°C to +85°C Dimensions Φ140mm x 141mm Ingress Protection IP67 Drop Resistance Withstands drops of up to 2 meters Buttons 2 buttons Indicators 4 LED indicators Humidity Resistance 100% non-condensing Weight 1.03 kg	Power Consumption Rover: ≤2.0W Base Station: ≤2.2W Battery Life Rover: ≥20h Base Station: ≥15h Battery Capacity 10,000 mAh Input Voltage 9-36 V DC Radio Frequency Range 410-470 MHz Radio Transmission Power 0.5 W / 1.5 W Internal Storage 32 GB	Update Rate Default 1 Hz, configurable up to 20 Hz Physical Interfaces USB Type-C, SIM card slot, TNC connector Wireless Connectivity Bluetooth 4.1 (backward compatible with BT 2.x) Wi-Fi: IEEE 802.11 a/b/g/n
Data Output & Inertial Measurement
Differential Data RTCM 3.x Positioning Data NMEA 0183 Static Data Proprietary binary format	Tilt Angle Range 0-60° Tilt Compensation Accuracy ≤ 2.5 cm (within 30° tilt)

Product Summary

H12 Pro High-Precision IMU GNSS Receiver Advanced Tilt Compensation and Full-Constellation Tracking Why Choose the H12 Pro GNSS Receiver The H12 Pro GNSS Receiver is a high-performance, precision device designed for demanding surveying and positioning applications. With full GNSS constellation ...
