Industrial Grade IP68 GNSS Receiver High Precision Anti Interference NET30-BD

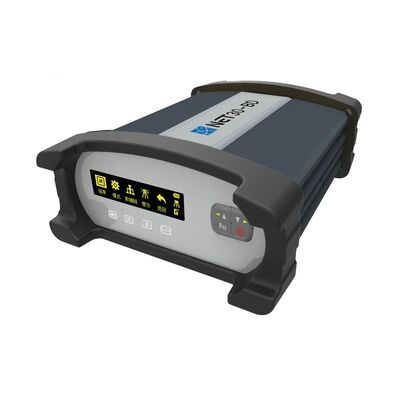

NET30-BD GNSS Receiver

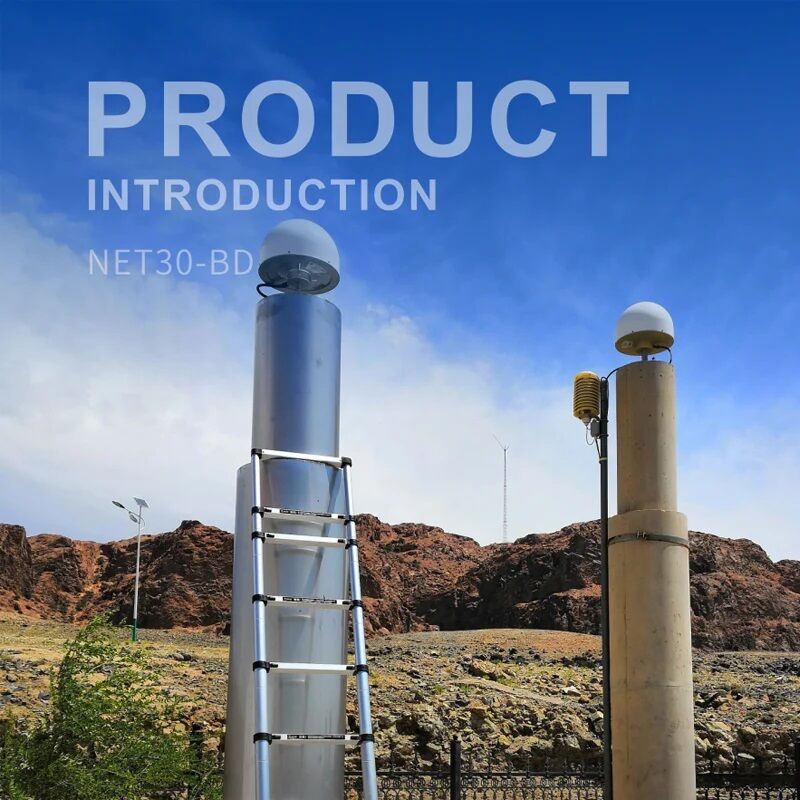

The NET30-BD GNSS receiver is designed by Wuhan Tianbao Nait Technology Co., Ltd. for the construction of ground-based augmentation systems. It is a high-performance GNSS receiver equipped with a Linux operating system, featuring the SX-6-BD BeiDou baseband chip and P40U-B high-precision motherboard. The receiver supports external frequency standard input, event input, and large-capacity data storage, ensuring stable and reliable performance. With support for secondary development, it excels in various fields, offering enhanced positioning accuracy and extended battery life. The NET30-BD is the ideal choice for BeiDou ground-based augmentation system construction.

1. High-Precision Positioning Algorithm
   The NET30-BD uses the P40U-B high-precision motherboard, which supports full BeiDou frequency bands. The receiver is equipped with advanced anti-jamming technology and a programmable, adaptive on-chip digital filter. This technology ensures detection and suppression of both in-band and out-of-band GNSS interference, maintaining accuracy and performance in complex electromagnetic environments, thus improving the system’s reliability and usability.

2. Multipath Mitigation and Anti-Interference Technology
   Featuring a BeiDou chip with ACEBOC tracking, the NET30-BD enhances support for new signals and offers robust anti-interference functionality. Additionally, it optimizes low-power performance and multipath suppression technology, achieving nanosecond-level NTP synchronization. Full autonomy and control are also incorporated, making it a powerful solution for various applications.

3. All-Weather Data Security
   The receiver utilizes an integrated high-frequency carrier-phase real-time displacement algorithm. It includes configurable notification features that automatically alert you to any changes in the base station’s location, data records, temperature, satellite tracking, power supply, or communication status. This ensures accurate observation data and complete device monitoring, guaranteeing secure and reliable data capture under all conditions.

4. Smart Host Design
   The receiver is powered by a TI ARM9 core processor running at 866MHz and features 32GB of system storage. It offers exceptional performance and fast processing speed. The receiver supports multiple user-level settings and web interface access restrictions, combined with advanced encryption technology to prevent unauthorized access. Integrated firewall and IP address filtering further enhance device security.

5. Industrial-Grade Protection Design
   Designed to meet the IP68 standard, the NET30-BD is built to perform in harsh environments. It is equipped with a 13,600mAh high-capacity built-in battery, extending operational time during power outages or in disaster scenarios, ensuring uninterrupted data capture and reliability in any location.

6. Professional and Comprehensive Local Support
   The receiver is backed by fast response times to customer needs. Firmware upgrades are provided free for life, ensuring the receiver’s performance remains cutting-edge, with continuous enhancements in functionality and security.
