H16PRO Portable High Accuracy GNSS Receiver Full Constellation upport

Place of Origin:China
Brand Name:TBNET
Certification:CE
Model Number:H16 Pro
Minimum Order Quantity:1set
Price:contact us
Payment Terms:T/T
Supply Ability:50 sets per Month
Product Details
Highlight:

Portable Multi Frequency GNSS Receiver

,

Precision Positioning GNSS Receiver

,

GNSS Receiver With Radio Module
Single Point Positioning: Horizontal: 1.5 M ; Vertical: 2.5 M
RTK Accuracy (RMS): Horizontal: 8 Mm + 1 Ppm ; Vertical: 15 Mm + 1 Ppm
Static Accuracy (RMS): Horizontal: 2.5 Mm + 0.5 Ppm ; Vertical: 5 Mm + 0.5 Ppm
Product Description

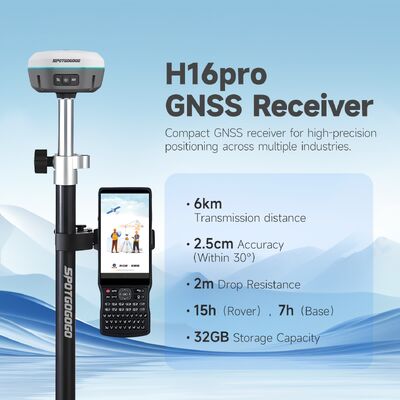

H16 Pro GNSS Receiver
The H16PRO GNSS Receiver is a versatile and compact device equipped with a full-frequency GNSS antenna, high-precision positioning board, IMU module, and integrated radio module. It can operate as both a rover and a base station, offering high accuracy, low power consumption, and a portable, user-friendly design.
Key Features

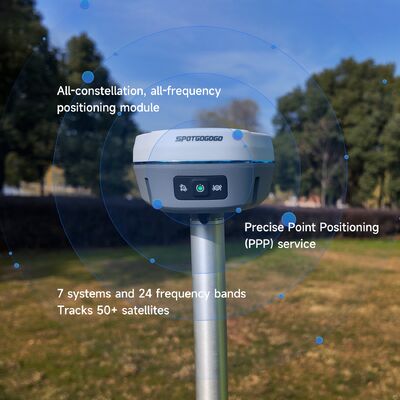

Full Constellation Support
Receives signals from all major satellite systems (BDS, GPS, GLONASS, Galileo, QZSS)
Smart Web Platform
Accessible via mobile devices over Wi-Fi for device status and configuration
IMU Module
Enables quick calibration with 2.5 cm tilt compensation accuracy within 30° range
Type-C Interface
Standardized connection for fast data transfer and convenient charging
Durable Design
IP67-rated for water/dust resistance and withstands 2-meter drops
Integrated Radio Module
Supports multiple protocols with transmission range up to 7 km
Large Storage Capacity
32 GB internal storage for real-time data logging and job file management
Performance Benefits
  • High Precision: Centimeter-level accuracy for precise measurements in various environments
  • User-Friendly: Intuitive web interface and mobile connectivity for easy operation
  • Multi-System Compatibility: Enhanced reliability and signal stability through multiple satellite constellations
  • Extended Battery Life: Long-lasting battery ensures continuous operation over extended periods
Technical Specifications
Accuracy Indicators Physical Parameters Electrical Parameters
Single Point Positioning:
Horizontal: 1.5 m
Vertical: 2.5 m
RTK Accuracy (RMS):
Horizontal: 8 mm + 1 ppm
Vertical: 15 mm + 1 ppm
Static Accuracy (RMS):
Horizontal: 2.5 mm + 0.5 ppm
Vertical: 5 mm + 0.5 ppm
Speed Accuracy:
0.03 m/s
Operating Temperature:
-40°C to +60°C
Storage Temperature:
-55°C to +75°C
Dimensions:
Ф99.7 mm * 95.4 mm * 63.1 mm
Protection Level:
IP67
Impact and Vibration:
Resistant to 2 m drop

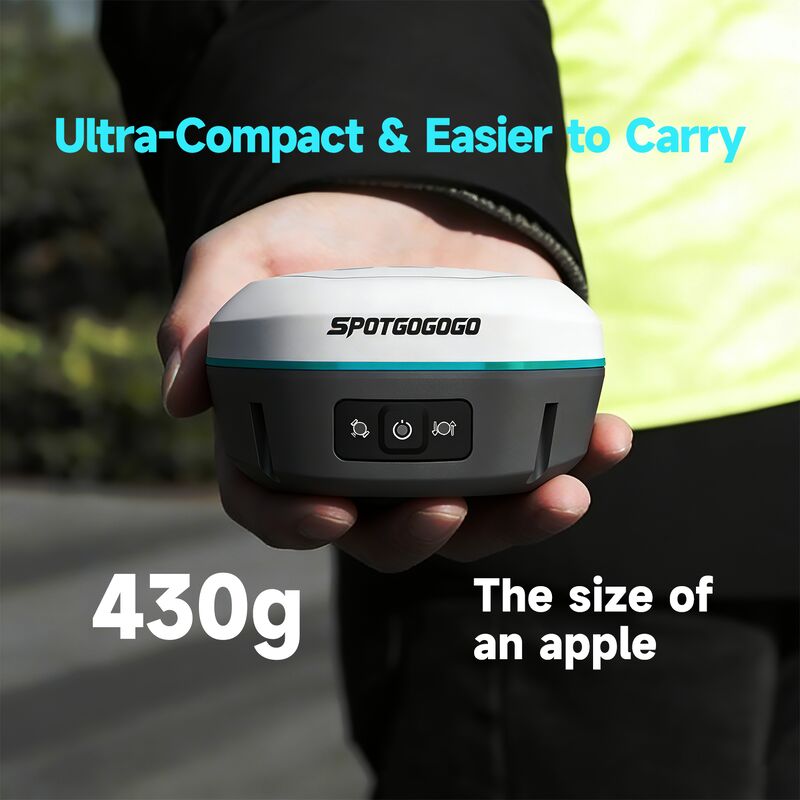

Weight:
430g
Humidity:
95% non-condensing
Power Consumption:
≤3.0W
Battery Life:
≥15h (Rover), ≥7h (Base)
Radio Frequency:
410~470MHz
Input Voltage:
5V 2V
Battery Capacity:
4000 mAh
Radio Power:
1W/1.5W
Storage Capacity:
32 GB
Signal Tracking Capabilities
  • BDS: B1I / B2I / B3I / B1C / B2a / B2b
  • GPS: L1C / A / L2P(Y) / L2C / L5
  • GLONASS: G1 / G2 / G3
  • Galileo: E1 / E5a / E5b / E6
  • QZSS: L1 / L2 / L5
Data Output & Initialization
  • Differential Data: RTCM 3.X
  • Positioning Data: NMEA-0183
  • Static Data: Binary
  • Inertial Measurement: Tilt Angle: 0-60°
  • Cold Start: <12 s
  • Initialization: <5 s (typical)
  • RTK Initialization Reliability: >99.9%
  • Reacquisition Time: <1 s
Core Applications
H16PRO Portable High Accuracy GNSS Receiver Full Constellation upport 0
SURVEYING
H16PRO Portable High Accuracy GNSS Receiver Full Constellation upport 1
PRECISION AGRICULTURE
H16PRO Portable High Accuracy GNSS Receiver Full Constellation upport 2
MINING AND CONSTRUCTION
Product Summary

H16 Pro GNSS Receiver The H16PRO GNSS Receiver is a versatile and compact device equipped with a full-frequency GNSS antenna, high-precision positioning board, IMU module, and integrated radio module. It can operate as both a rover and a base station, offering high accuracy, low power consumption, ...
