Spatial Camera PortalCam High Fidelity 3D Reconstructions With True To Life Detail

Place of Origin:China
Brand Name:TBNET&XGRIDS
Certification:CE,ISO
Model Number:PortalCam
Minimum Order Quantity:1set
Price:contact us
Payment Terms:T/T
Supply Ability:50 sets per Month
Product Details
Highlight:

High Fidelity Spatial Camera

,

3D Reconstructions PortalCam

,

True To Life Detail PortalCam
Body Weight: 870g (1.9 Lbs) Without Tripod
Dimensions: 130mm × 90mm × 77mm (5.1 × 3.5 × 3.0 In)
Laser Classification: Class 1 / 940nm
Camera Configuration: 4-camera Array 2 × Fisheye, 2 × Front
Housing Material: Aerospace-grade Aluminum Alloy
Product Description

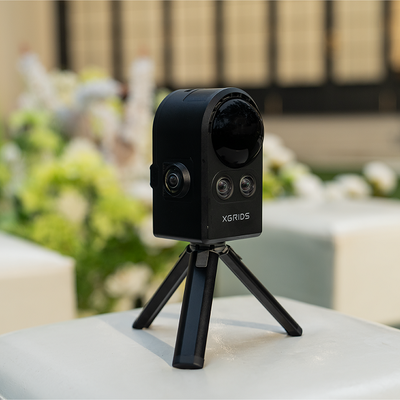

PortalCam - The First True Spatial Camera

PortalCam is the first handheld device that captures reality as interactive 3D environments using breakthrough 3D Gaussian Splatting technology. It combines LiDAR, a four-camera array, and automated processing to create photorealistic spatial models you can walk through, edit, and share across platforms.

Spatial Camera PortalCam High Fidelity 3D Reconstructions With True To Life Detail 0

Ultra-portable

Lightweight at <900g for easy handheld operation

Spatial Camera PortalCam High Fidelity 3D Reconstructions With True To Life Detail 1

3DGS Native

Built on breakthrough 3D Gaussian Splatting technology

Spatial Camera PortalCam High Fidelity 3D Reconstructions With True To Life Detail 2

Mobile Capture

Portable scanning for on-the-go 3D capture

Spatial Camera PortalCam High Fidelity 3D Reconstructions With True To Life Detail 3

Photorealistic Models

High-fidelity 3D reconstructions with true-to-life detail

Spatial Camera PortalCam High Fidelity 3D Reconstructions With True To Life Detail 4

Cinematic Quality

Film-grade visual fidelity with true-to-life lighting, textures, and materials

Spatial Camera PortalCam High Fidelity 3D Reconstructions With True To Life Detail 5

One-Touch Simplicity

Smartphone-simple operation—scan 100 m² (1,067 sq ft) in 10 minutes at walking speed

Spatial Camera PortalCam High Fidelity 3D Reconstructions With True To Life Detail 6

Detail to Distance

Replicate everything from 2 mm text to 1,000 m² parks in one seamless 3D model

Spatial Camera PortalCam High Fidelity 3D Reconstructions With True To Life Detail 7

Create, Share, Experience

Export to Unreal, Unity, web, and VR platforms via SDKs. Built-in cloud sharing for instant collaboration

Spatial Camera PortalCam High Fidelity 3D Reconstructions With True To Life Detail 8

Walk & Scan

Walk through any space with PortalCam for automatic 3D capture

Spatial Camera PortalCam High Fidelity 3D Reconstructions With True To Life Detail 9

Automated Processing

Advanced algorithms automatically generate photorealistic 3D models

Spatial Camera PortalCam High Fidelity 3D Reconstructions With True To Life Detail 10

View, Edit, Share

Modify, annotate, and share spatial content across teams and platforms

Spatial Camera PortalCam High Fidelity 3D Reconstructions With True To Life Detail 11

Deploy Everywhere

Seamless integration with existing 3D workflows and applications

Applications

Spatial Camera PortalCam High Fidelity 3D Reconstructions With True To Life Detail 12

Real Estate

Spatial Camera PortalCam High Fidelity 3D Reconstructions With True To Life Detail 13

Film & Virtual Production

Spatial Camera PortalCam High Fidelity 3D Reconstructions With True To Life Detail 14

Gaming

Spatial Camera PortalCam High Fidelity 3D Reconstructions With True To Life Detail 15

Cultural Heritage

Spatial Camera PortalCam High Fidelity 3D Reconstructions With True To Life Detail 16

VR/AR

Spatial Camera PortalCam High Fidelity 3D Reconstructions With True To Life Detail 17

Personal Archives

Technical Specifications

Physical Specifications
Power Consumption <19W Body Weight 870g (1.9 lbs) without tripod
Dimensions 130mm × 90mm × 77mm (5.1 × 3.5 × 3.0 in) Housing Material Aerospace-grade Aluminum Alloy
LiDAR System
Laser Classification Class 1 / 940nm Scanning Range 0.1m - 30m (4 in - 98 ft) @ 10% reflectivity
60m (197 ft) @ 90% reflectivity
Field of View 180° azimuth × 180° elevation Point Rate 856,000 points/second
Camera System
Camera Configuration 4-camera array
2 × Fisheye, 2 × Front		 Image Resolution 4000 × 3000 px
Sensor Size 1/2" CMOS Shutter Type Rolling Shutter
Fisheye Camera FOV 200° × 200° (each) Front Camera FOV 100° × 85° (each)
Connectivity & Storage
Data Interface USB 3.0 Internal Storage 512GB
GPS Module Supported WiFi 802.11 a/b/g/n/ac/ax
2.4GHz: 2412-2472MHz
5GHz: 5180-5240MHz
5GHz: 5745-5825MHz
Bluetooth 5.2 Wireless Range 20m (65.6 ft)
Power System
Battery Type Removable Li-ion Battery Capacity 23.04Wh
Operating Time 60 minutes (continuous scanning) Charging Time (25°C/77°F) 0-90%: 70 minutes
0-100%: 90 minutes
Operating Temperature -20°C - 45°C (-4°F - 113°F) (indirect sunlight only) Charging Temperature 5°C - 30°C (41°F - 86°F)
Power Adapter
Input 100-240V, 50-60Hz, 1.5A, 80VA Output 20V, 2.0A
Rated Power PD Protocol, >25W Standard USB-C 45W single port
Dual port 25W + 20W

Accessories

Backpack with Protective Insert: Included

Extension Pole (2m/6.6 ft): Optional

External Storage (512GB/1TB SSD): Optional

Product Summary

PortalCam - The First True Spatial Camera PortalCam is the first handheld device that captures reality as interactive 3D environments using breakthrough 3D Gaussian Splatting technology. It combines LiDAR, a four-camera array, and automated processing to create photorealistic spatial models you can ...
