H16PRO Integrated GNSS Survey Receiver Multi Constellation IP67 Rated

Brand Name:	TBNET
Model Number:	H16 Pro
MOQ:	1set
Price:	contact us
Payment Terms:	T/T
Supply Ability:	50 sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Document:

H16PRO GNSS Receiver.pdf

Power Consumption:

≤3.0W

Battery Life:

≥15h (Rover), ≥7h (Base)

Protection Level:

IP67

Storage Capacity:

32 GB

Buttons:

Speed Accuracy:

0.03 M/s

Supply Ability:

50 sets per Month

Highlight:

Full Constellation Support GNSS Receiver

Multi Constellation GNSS Receiver

IP67 Rated GNSS Receiver

Product Description

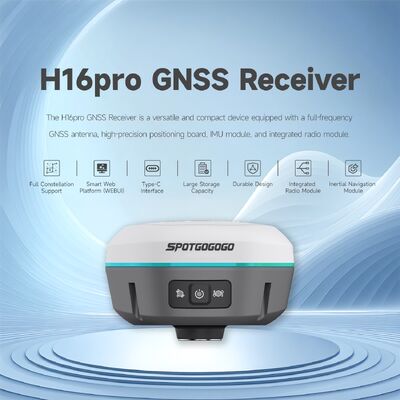

H16PRO GNSS Receiver

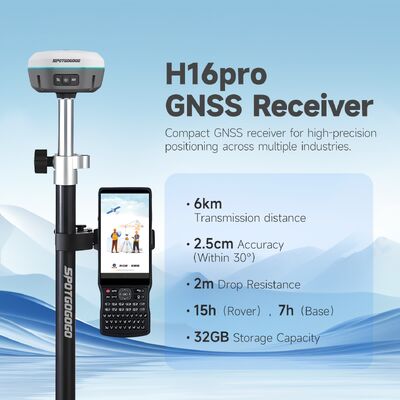

The H16PRO GNSS Receiver is a versatile and compact device that operates as both a rover and base station, delivering high accuracy positioning with low power consumption in a portable, user-friendly design.

Key Features

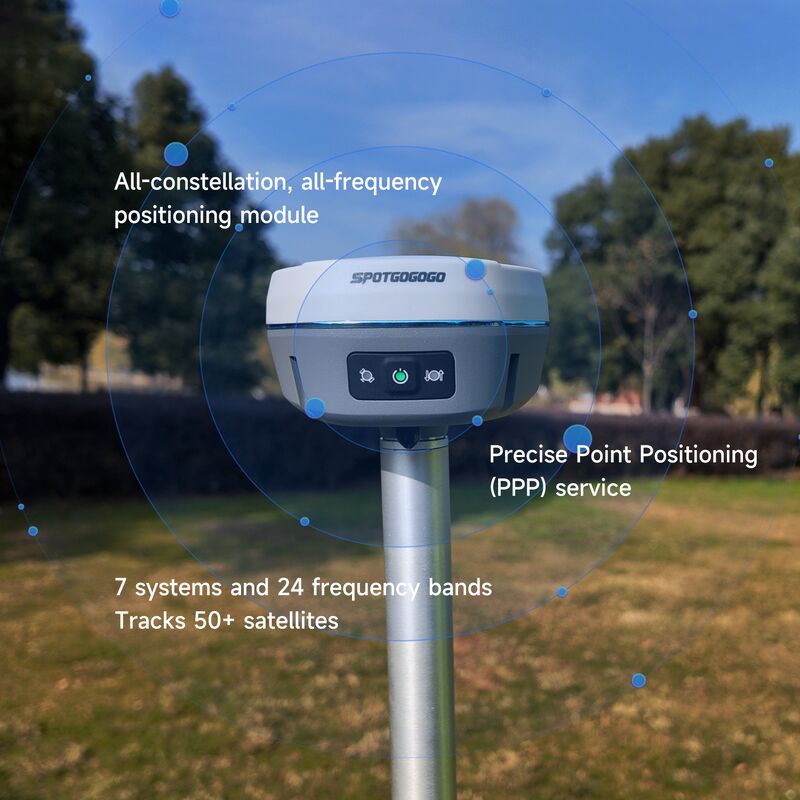

Full Constellation Support

Receives signals from all major satellite systems including BDS, GPS, GLONASS, Galileo, and QZSS

Smart Web Platform (WEBUI)

Accessible via mobile devices over Wi-Fi for easy device status monitoring and configuration

IMU Module

Provides 2.5 cm tilt compensation accuracy within 30° tilt range with quick calibration

Type-C Interface

Standardized connection for fast data transfer and convenient charging

Durable Design

IP67-rated for water and dust resistance; withstands 2-meter drops

Integrated Radio Module

Supports multiple communication protocols with up to 7 km transmission range

Large Storage Capacity

32 GB internal storage for real-time data logging and job file management

Performance Benefits

High Precision

Centimeter-level accuracy for precise measurements in various environments

User-Friendly Operation

Intuitive web interface and mobile connectivity for easy operation

Multi-System Compatibility

Enhanced reliability and signal stability through multiple satellite constellations

Extended Battery Life

Long-lasting battery ensures continuous operation over extended periods

Technical Specifications

Accuracy Indicators	Physical Parameters	Electrical Parameters

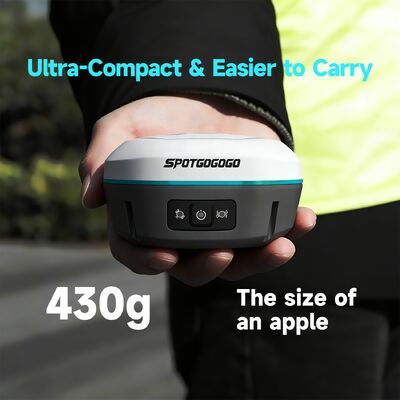

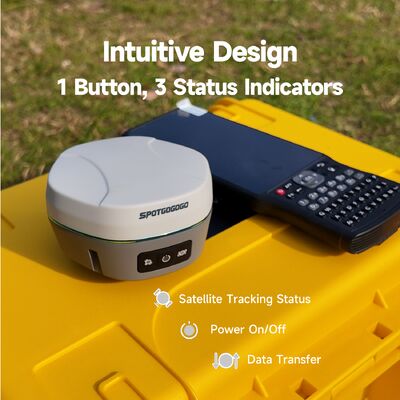

Single Point Positioning: Horizontal: 1.5 m Vertical: 2.5 m RTK Accuracy (RMS): Horizontal: 8 mm + 1 ppm Vertical: 15 mm + 1 ppm Static Accuracy (RMS): Horizontal: 2.5 mm + 0.5 ppm Vertical: 5 mm + 0.5 ppm Speed Accuracy: 0.03 m/s	Operating Temperature: -40°C to +60°C Storage Temperature: -55°C to +75°C Dimensions: Ф99.7 mm * 95.4 mm * 63.1 mm Protection Level: IP67 Impact and Vibration: Resistant to 2 m drop Buttons: 1 Indicators: 3 LED indicators Humidity: 95% non-condensing Weight: 430g	Power Consumption: ≤3.0W Battery Life: ≥15h (Rover), ≥7h (Base) Radio Frequency: 410~470MHz Input Voltage: 5V 2V Battery Capacity: 4000 mAh Radio Power: 1W/1.5W Storage Capacity: 32 GB

Signal Tracking Capabilities

BDS

B1I / B2I / B3I / B1C / B2a / B2b

GPS

L1C / A / L2P(Y) / L2C / L5

GLONASS

G1 / G2 / G3

Galileo

E1 / E5a / E5b / E6

QZSS

L1 / L2 / L5

Data Output & Performance

Data Formats

Differential Data: RTCM 3.X
Positioning Data: NMEA-0183
Static Data: Binary

Inertial Measurement

Tilt Angle: 0-60°

Initialization Performance

Cold Start: <12 s
Initialization: <5 s (typical)
RTK Initialization Reliability: >99.9%
Reacquisition Time: <1 s

Core Applications

SURVEYING

PRECISION AGRICULTURE

MINING AND CONSTRUCTION
