H16pro RTK GNSS Base Station

Place of Origin:China
Brand Name:TBNET
Certification:CE
Model Number:H16 Pro
Minimum Order Quantity:1set
Price:contact us
Payment Terms:T/T
Supply Ability:50 sets per Month
Product Details
Highlight:

RTK GNSS base station with warranty

,

H16pro GNSS surveying equipment

,

geospatial RTK base station
Single Point Positioning: Horizontal: 1.5 M ; Vertical: 2.5 M
RTK Accuracy (RMS): Horizontal: 8 Mm + 1 Ppm ; Vertical: 15 Mm + 1 Ppm
Static Accuracy (RMS): Horizontal: 2.5 Mm + 0.5 Ppm ; Vertical: 5 Mm + 0.5 Ppm
BDS: B1I / B2I / B3I / B1C / B2a / B2b
GPS: L1C / A / L2P(Y) / L2C / L5
GLONASS: G1 / G2 / G3
Galileo: E1 / E5a / E5b / E6
QZSS: L1 / L2 / L5
Product Description

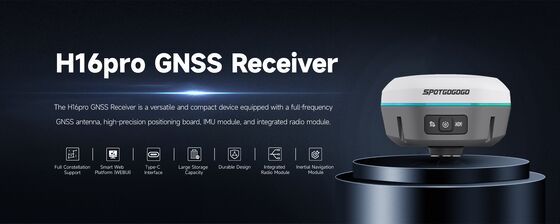

H16pro RTK GNSS Base Station

Why Choose H16PRO GNSS Receiver

The H16PRO is a professional-grade, all-in-one GNSS receiver designed to deliver centimeter-level accuracy in the most demanding environments. Whether you are performing complex land surveys or managing precision workflows, the H16PRO combines power, portability, and versatility.

Key Features & Technical Advantages

  • Full-Frequency GNSS Tracking: Equipped with a high-gain antenna and a high-precision positioning board, it tracks all major constellations (GPS, GLONASS, Galileo, BeiDou) for rapid signal acquisition.
  • Integrated IMU Tilt Compensation: The built-in IMU module allows for accurate measurements even when the pole is tilted, significantly increasing field efficiency.
  • Dual-Mode Versatility: Seamlessly switch between Base Station and Rover modes thanks to the integrated long-range radio module.
  • Ultra-Portable & Rugged: A compact, low-power design ensures all-day battery life and easy transport without sacrificing durability.


Learn More About H16PRO GNSS Receiver
Full Constellation Support
Receives signals from all major satellite systems (BDS, GPS, GLONASS, Galileo, QZSS)
Smart Web Platform (WEBUI)
Accessible via mobile devices over Wi-Fi, enabling easy access to device status and configuration settings
IMU Module
Enables quick calibration and provides 2.5 cm tilt compensation accuracy within a 30° tilt range
Type-C Interface
A standardized and versatile connection interface for fast data transfer and convenient charging
Durable Design
IP67-rated for water and dust resistance; withstands drops from heights of up to 2 meters
Integrated Radio Module
Supports multiple communication protocols with a transmission range of up to 7 km
Large Storage Capacity
Equipped with 32 GB of internal storage for real-time data logging and job file management

Benefits

High Precision
Provides centimeter-level accuracy for precise measurements in a variety of environments
User-Friendly
Easy to operate with an intuitive web interface and mobile connectivity
Multi-System Compatibility
Enhances reliability and signal stability by supporting multiple satellite constellations
Extended Battery Life
A long-lasting battery ensures continuous operation over extended periods

Specifications

Accuracy Indicators Physical Parameters Electrical Parameters
Single Point Positioning:
Horizontal: 1.5 m
Vertical: 2.5 m

RTK Accuracy (RMS):
Horizontal: 8 mm + 1 ppm
Vertical: 15 mm + 1 ppm

Static Accuracy (RMS):
Horizontal: 2.5 mm + 0.5 ppm
Vertical: 5 mm + 0.5 ppm

Speed Accuracy: 0.03 m/s		 Operating Temperature: -40°C to +60°C

Storage Temperature: -55°C to +75°C

Dimensions: Ф99.7 mm * 95.4 mm * 63.1 mm

Protection Level: IP67

Impact and Vibration: Resistant to 2 m drop

Buttons: 1

Indicators: 3 LED indicators

Humidity: 95% non-condensing

Weight: 430g		 Power Consumption: ≤3.0W

Battery Life: ≥15h (Rover), ≥7h (Base)

Radio Frequency: 410~470MHz

Input Voltage: 5V 2V

Battery Capacity: 4000 mAh

Radio Power: 1W/1.5W

Storage Capacity: 32 GB
Signal Tracking
BDS: B1I / B2I / B3I / B1C / B2a / B2b

GPS: L1C / A / L2P(Y) / L2C / L5

GLONASS: G1 / G2 / G3

Galileo: E1 / E5a / E5b / E6

QZSS: L1 / L2 / L5
Data Output & Initialization
Differential Data: RTCM 3.X

Positioning Data: NMEA-0183

Static Data: Binary		 Inertial Measurement:
Tilt Angle: 0-60°		 Cold Start: <12 s

Initialization: <5 s (typical)

RTK Initialization Reliability: >99.9%

Reacquisition Time: <1 s

Core Applications

H16pro RTK GNSS Base Station 0
SURVEYING
H16pro RTK GNSS Base Station 1
PRECISION AGRICULTURE
H16pro RTK GNSS Base Station 2
MINING AND CONSTRUCTION
Product Summary

H16pro RTK GNSS Base Station Why Choose H16PRO GNSS Receiver The H16PRO is a professional-grade, all-in-one GNSS receiver designed to deliver centimeter-level accuracy in the most demanding environments. Whether you are performing complex land surveys or managing precision workflows, the H16PRO ...
