Centimeter Level Accuracy Geospatial Products GNSS Receiver IP67 Multi Compatibility
Place of Origin:China
Brand Name:TBNET
Certification:CE
Model Number:H16 Pro
Minimum Order Quantity:1set
Price:contact us
Payment Terms:T/T
Supply Ability:50 sets per Month
Tags:
Product Details
Highlight:
Centimeter Level Accuracy GNSS Receiver
,IP67 Rated Accuracy GNSS Receiver
,Centimeter Level Accuracy Geospatial Products
Single Point Positioning:
Horizontal: 1.5 M ; Vertical: 2.5 M
RTK Accuracy (RMS):
Horizontal: 8 Mm + 1 Ppm ; Vertical: 15 Mm + 1 Ppm
Static Accuracy (RMS):
Horizontal: 2.5 Mm + 0.5 Ppm ; Vertical: 5 Mm + 0.5 Ppm
BDS:
B1I / B2I / B3I / B1C / B2a / B2b
GPS:
L1C / A / L2P(Y) / L2C / L5
GLONASS:
G1 / G2 / G3
Galileo:
E1 / E5a / E5b / E6
QZSS:
L1 / L2 / L5
Product Description

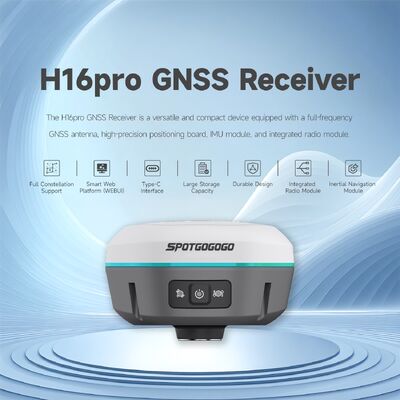

H16PRO GNSS Receiver
Why Choose SpotGoGoGo H16PRO GNSS Receiver
The H16PRO GNSS Receiver is a versatile and compact device equipped with a full-frequency GNSS antenna, high-precision positioning board, IMU module, and integrated radio module. It can operate as both a rover and a base station, offering high accuracy, low power consumption, and a portable, user-friendly design. The H16PRO is ideal for applications such as surveying, precision agriculture, GIS, marine surveying, construction, mining, aerial photography, and UAV operations.
Learn More About H16PRO GNSS Receiver
Full Constellation Support
Receives signals from all major satellite systems (BDS, GPS, GLONASS, Galileo, QZSS)
Smart Web Platform (WEBUI)
Accessible via mobile devices over Wi-Fi, enabling easy access to device status and configuration settings
IMU Module
Enables quick calibration and provides 2.5 cm tilt compensation accuracy within a 30° tilt range
Type-C Interface
A standardized and versatile connection interface for fast data transfer and convenient charging
Durable Design
IP67-rated for water and dust resistance; withstands drops from heights of up to 2 meters
Integrated Radio Module
Supports multiple communication protocols with a transmission range of up to 7 km
Large Storage Capacity
Equipped with 32 GB of internal storage for real-time data logging and job file management
Benefits
High Precision
Provides centimeter-level accuracy for precise measurements in a variety of environments
User-Friendly
Easy to operate with an intuitive web interface and mobile connectivity
Multi-System Compatibility
Enhances reliability and signal stability by supporting multiple satellite constellations
Extended Battery Life
A long-lasting battery ensures continuous operation over extended periods
Specifications
| Accuracy Indicators | Physical Parameters | Electrical Parameters |
|---|---|---|
| Single Point Positioning: Horizontal: 1.5 m Vertical: 2.5 m RTK Accuracy (RMS): Horizontal: 8 mm + 1 ppm Vertical: 15 mm + 1 ppm Static Accuracy (RMS): Horizontal: 2.5 mm + 0.5 ppm Vertical: 5 mm + 0.5 ppm Speed Accuracy: 0.03 m/s |

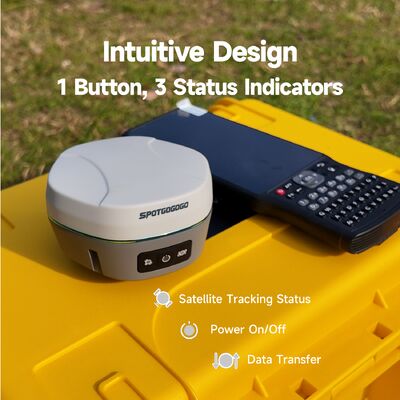

Operating Temperature: -40°C to +60°C Storage Temperature: -55°C to +75°C Dimensions: Ф99.7 mm * 95.4 mm * 63.1 mm Protection Level: IP67 Impact and Vibration: Resistant to 2 m drop Buttons: 1 Indicators: 3 LED indicators Humidity: 95% non-condensing Weight: 430g |
Power Consumption: ≤3.0W Battery Life: ≥15h (Rover), ≥7h (Base) Radio Frequency: 410~470MHz Input Voltage: 5V 2V Battery Capacity: 4000 mAh Radio Power: 1W/1.5W Storage Capacity: 32 GB |
| Signal Tracking | ||
| BDS: B1I / B2I / B3I / B1C / B2a / B2b GPS: L1C / A / L2P(Y) / L2C / L5 GLONASS: G1 / G2 / G3 Galileo: E1 / E5a / E5b / E6 QZSS: L1 / L2 / L5 |
||
| Data Output & Initialization | ||
| Differential Data: RTCM 3.X Positioning Data: NMEA-0183 Static Data: Binary |
Inertial Measurement: Tilt Angle: 0-60° |
Cold Start: <12 s Initialization: <5 s (typical) RTK Initialization Reliability: >99.9% Reacquisition Time: <1 s |
Core Applications
SURVEYING
PRECISION AGRICULTURE
MINING AND CONSTRUCTION
Product Summary
H16PRO GNSS Receiver Why Choose SpotGoGoGo H16PRO GNSS Receiver The H16PRO GNSS Receiver is a versatile and compact device equipped with a full-frequency GNSS antenna, high-precision positioning board, IMU module, and integrated radio module. It can operate as both a rover and a base station, ...
