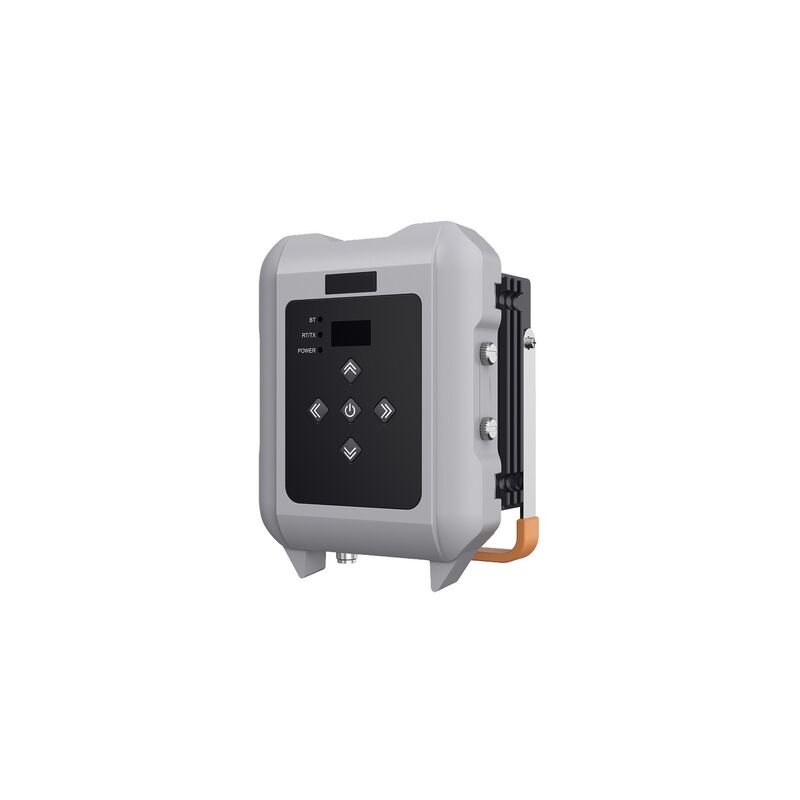

High Power 35W RTK Radio Modem Wireless Data Link IP67 Weatherproof

Place of Origin:China

Brand Name:TBNET

Model Number:D32

Minimum Order Quantity:1set

Price:contact us

Payment Terms:T/T

Product Details

Highlight:

High Power RTK Radio Modem

35W RTK Radio Modem

Frequency Range: 410-470 MHz

Operating Modes: Single Transmission, Transceivermode, Radio Repeater Mode

Channel Spacing: 25 KHz, 12.5 KHz Modulation Types:GMSK/4FSK

Radio Range: Greater Than 20 Km

Product Description

Why You'll Choose It

D32 is an advanced, high speed, high power, wireless data link built to withstand the demanding conditions of GNSS/RTK surveying and precise positioning. Due to the 35W high transmitting power, connection distances up to 20 kilometers can be covered in favorable conditions. It is designed with a ruggedized IP67 weatherproof enclosure to withstand extreme environments.

Specifications

Performance Specifications
Frequency Range	410-470 MHz
Operating Modes	Single transmission, transceivermode, radio repeater mode
Channel Spacing	25 kHz, 12.5 kHz Modulation Types:GMSK/4FSK
Communication Protocols	Supports TRIMTALK, TRIMMK3,TRANSEOT, and others
Radio Range	Greater than 20 km
Number of Channels	0-31 (supports up to 32 editablechannels)
Operating Voltage	9-16 V
Power Consumption (TypicalValues)	1.High Power Transmission(35 W):96W@12VDC 2.Medium Power Transmission (22W):66W@12VDC 3.Low Power Transmission(5 W):35W@12VDC 4.Standby:2 W @ 12 v DC
Frequency Stability	<±l ppm
Product Structure
Dimensions	175 mm (Length)x130 mm (Width)x 86.5 mm (Height)
Weight	Approximately 2 kg
Antenna Connector	TNC, Female
Antenna Impedance	50Ω
Data Interface	LEMO 5-pin
Physical Properties
Protection Rating	IP67
Indicators	Power Indicator Transmit/Receive Indicator Bluetooth (BT)Indicator
Buttons	Power Button (also acts as theConfirm Button) Navigation Buttons: Up, Down, Left,Right
Modem
Air Data Rate	4800 bps, 9600 bps, 19200 bps
Serial Port Rate	9600 bps, 19200 bps, 38400 bps,57600 bps, 115200 bps
Operating Environment
Operating Temperature Range	-40°C to+65°C
Operating Temperature Range	-40°C to+65°C
Storage Temperature Range	-50°C to+85°C
Transmitter Performance Specifications
RF Output PoWer (410-470 MHz)	1.High Power(35W):45.5 0.6 dBm@ DC 12V 2.Medium Power (22W):43.4 0.6dBm @ DC 12v 3.Low Power(5W):371.8 dBm @DC 12V
RF Power Stability	±ldB
Adjacent Channel Power	>50 dB

Product Summary

Why You'll Choose It D32 is an advanced, high speed, high power, wireless data link built to withstand the demanding conditions of GNSS/RTK surveying and precise positioning. Due to the 35W high transmitting power, connection distances up to 20 kilometers can be covered in favorable conditions. It ...
