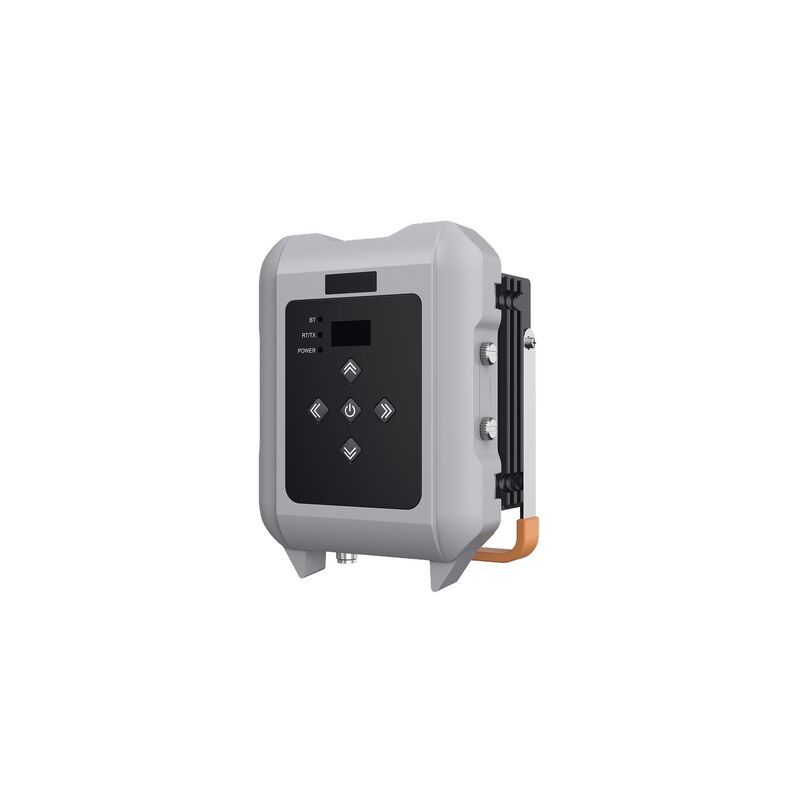

High Speed Radio Modem Wireless Data Link For GNSS / RTK Surveying
Place of Origin:China
Brand Name:TBNET
Model Number:D32
Minimum Order Quantity:1set
Price:contact us
Payment Terms:T/T
Tags:
Product Details
Highlight:
High Speed Radio Modem
,RTK Surveying Wireless Data Link
,High Speed Wireless Data Link
Radio Range:
Greater Than 20 Km
Frequency Range:
410-470 MHz
Number Of Channels:
0-31 (supports Up To 32 Editablechannels)
Operating Voltage:
9-16 V
Antenna Connector:
TNC, Female
Data Interface:
LEMO 5-pin
Product Description
Why Choose the D32 Wireless Data Link
The D32 is a high-performance, high-speed wireless data link designed for GNSS/RTK surveying and precise positioning applications. With a powerful 35W transmitting power, the D32 can achieve connection distances of up to 20 kilometers under optimal conditions. Built for durability, it features a rugged IP67-rated weatherproof enclosure, ensuring reliable performance even in the most extreme environments.
Specifications
| Performance Specifications | |
|---|---|
| Frequency Range | 410-470 MHz |
| Operating Modes | Single transmission, transceivermode, radio repeater mode |
| Channel Spacing | 25 kHz, 12.5 kHz Modulation Types:GMSK/4FSK |
| Communication Protocols | Supports TRIMTALK, TRIMMK3,TRANSEOT, and others |
| Radio Range | Greater than 20 km |
| Number of Channels | 0-31 (supports up to 32 editablechannels) |
| Operating Voltage | 9-16 V |
| Power Consumption (TypicalValues) |
1.High Power Transmission(35 W):96W@12VDC 2.Medium Power Transmission (22W):66W@12VDC 3.Low Power Transmission(5 W):35W@12VDC 4.Standby:2 W @ 12 v DC |
| Frequency Stability | <±l ppm |
| Product Structure | |
| Dimensions | 175 mm (Length)x130 mm (Width)x 86.5 mm (Height) |
| Weight | Approximately 2 kg |
| Antenna Connector | TNC, Female |
| Antenna Impedance | 50Ω |
| Data Interface | LEMO 5-pin |
| Physical Properties | |
| Protection Rating | IP67 |
| Indicators |
|
| Buttons |
|
| Modem | |
| Air Data Rate | 4800 bps, 9600 bps, 19200 bps |
| Serial Port Rate | 9600 bps, 19200 bps, 38400 bps,57600 bps, 115200 bps |
| Operating Environment | |
| Operating Temperature Range | -40°C to+65°C |
| Operating Temperature Range | -40°C to+65°C |
| Storage Temperature Range | -50°C to+85°C |
| Transmitter Performance Specifications | |
| RF Output PoWer (410-470 MHz) |
1.High Power(35W):45.5 0.6 dBm@ DC 12V 2.Medium Power (22W):43.4 0.6dBm @ DC 12v 3.Low Power(5W):371.8 dBm @DC 12V |
| RF Power Stability | ±ldB |
| Adjacent Channel Power | >50 dB |
Product Summary
Why Choose the D32 Wireless Data Link The D32 is a high-performance, high-speed wireless data link designed for GNSS/RTK surveying and precise positioning applications. With a powerful 35W transmitting power, the D32 can achieve connection distances of up to 20 kilometers under optimal conditions. ...
