HF3000 Solar Powered Electronic Smart Buoy System High Precision IP67 Waterproof

HF3000 electronic buoy system primarily consists of two parts: an intelligent current meter and an intelligent management platform. The intelligent current meter integrates modules such as a high-precision positioning board, a GNSS antenna, a 4G module, a solar power supply system, and an intelligent retrieval system. It utilizes GNSS positioning technology to obtain real-time information about the current meter's location, time, flow rate, and flow direction. This information is uploaded to the designated management platform through the internal 4G module. Through the management platform, users can view the specific conditions of each current meter at different locations, as well as the flow rate and direction of each river during different time periods.

This system plays a significant role in fields such as hydrological surveying, water resource management, flood warning and prevention, and river ecology research.

• The system integrates a large-capacity battery, a backup small battery, solar panels, a GNSS ceramic antenna, a satellite positioning module, a 4G module, etc;
• With ultra-long battery life, the entire device can operate normally for 48 hours.

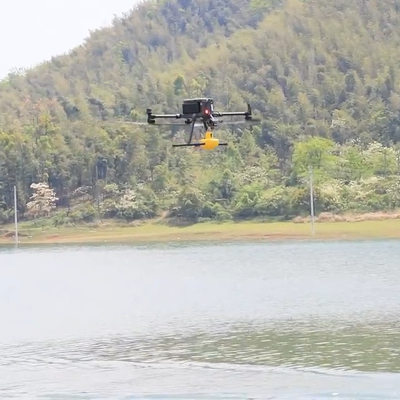

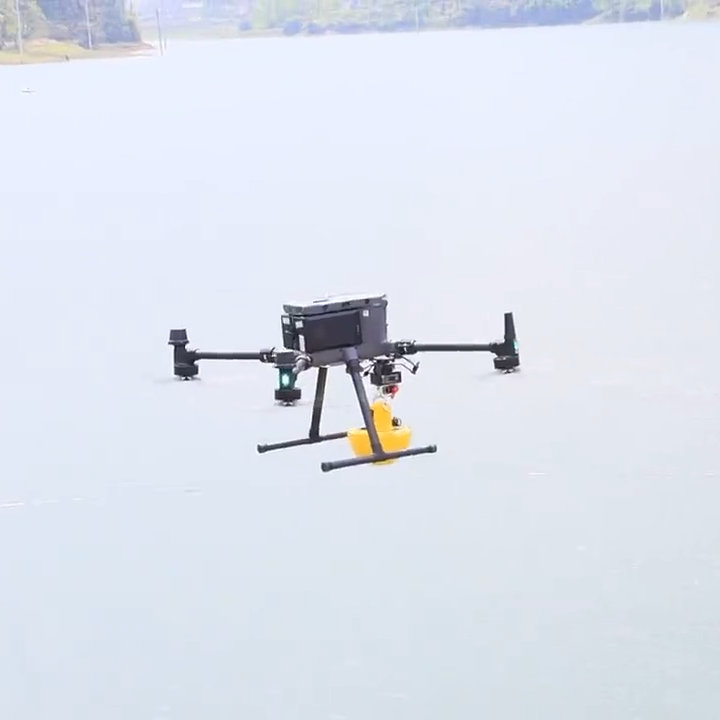

• The lifting ring design can be applied to drone throwing
• The solar-powered system, equipped with a built-in backup battery, can charge the backup battery through the solar panel to maintain alarm functionality after the main battery is fully drained
• Intelligent retrieval system, automatic nighttime lighting of patrol lights, facilitating equipment retrieval
• The entire machine conforms to fluid mechanics design, adapts to river environments in different water basins, and does not reverse or rotate
• IP67 waterproof and dustproof rating, shock and drop resistance
• The bottom thread design requires adding a counterweight, which can be screwed on with corresponding objects
• A powerful display platform that provides real-time information such as location and flow rate
• Full-network 4G module
• Support remote upgrade of various modules
• Low maintenance cost and high cost-effectiveness

• Positioning accuracy: sub-meter level
• Satellite tracking: 64 channels, supporting BDS, GPS, Galileo, GLONASS, QZSS, and SBAS
• Speed accuracy: 0.01 m/s (GNSS)
• Data update rate: 1 Hz/5 Hz/10 Hz
• Ceramic antenna frequency bands: L1: 1575.42±1.023 MHz, B1: 1561.098±2.046 MHz
• Impedance: 50ohm
• Gain: 4.5db

• Temperature: -40℃ ~ 85℃
• Waterproof and dustproof: IP67 rating

• Main battery: 11000mAH
• Auxiliary battery: 50mAh
• Charging power supply: DC 5V/2A
• Operating voltage: 3V~4.2V
• Indicator lights: power light, satellite search light, upload light
• Other: solar panel, recovery indicator light

• USB transmission port
• Key switch

• Display: longitude, latitude, speed, time, direction
• Upgrade: via remote upgrade
• Query: Supports queries based on specified flowmeters and specified time
• Flow measurement line: Supports manual addition of flow measurement locations, displaying various information when passing through the location
