Lightweight 3D Gaussian Splatting PortalCam Spatial Camera Photorealistic Models
Place of Origin:China
Brand Name:TBNET&XGRIDS
Certification:CE,ISO
Model Number:PortalCam
Minimum Order Quantity:1set
Price:contact us
Payment Terms:T/T
Supply Ability:50 sets per Month
Tags:
Product Details
Highlight:
3D Gaussian Splatting PortalCam
,Photorealistic Models Spatial Camera
,Lightweight 3D Camera Spatial Camera
Body Weight:
870g (1.9 Lbs) Without Tripod
Dimensions:
130mm × 90mm × 77mm (5.1 × 3.5 × 3.0 In)
Laser Classification:
Class 1 / 940nm
Camera Configuration:
4-camera Array 2 × Fisheye, 2 × Front
Product Description

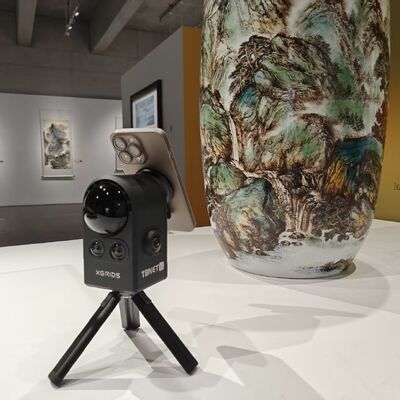

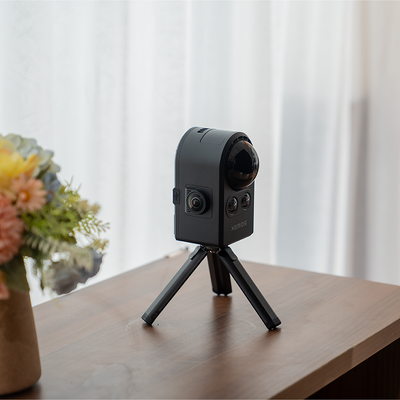

PortalCam - The First True Spatial Camera
PortalCam is the first handheld device that captures reality as interactive 3D environments using breakthrough 3D Gaussian Splatting technology. It combines LiDAR, a four-camera array, and automated processing to create photorealistic spatial models you can walk through, edit, and share across platforms.
Ultra-portable
Lightweight at <900g for easy handheld operation
3DGS Native
Built on breakthrough 3D Gaussian Splatting technology
Mobile Capture
Portable scanning for on-the-go 3D capture
Photorealistic Models
High-fidelity 3D reconstructions with true-to-life detail
Cinematic Quality
Film-grade visual fidelity with true-to-life lighting, textures, and materials
One-Touch Simplicity
Smartphone-simple operation—scan 100 m² (1,067 sq ft) in 10 minutes at walking speed
Detail to Distance
Replicate everything from 2 mm text to 1,000 m² parks in one seamless 3D model
Create, Share, Experience
Export to Unreal, Unity, web, and VR platforms via SDKs. Built-in cloud sharing for instant collaboration

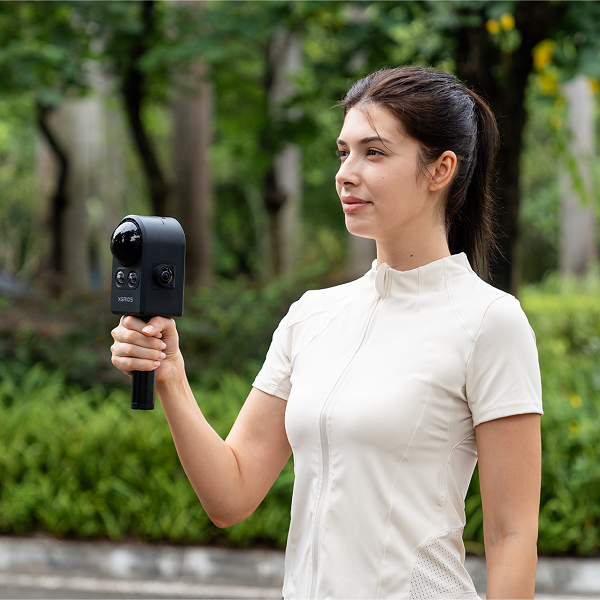

Walk & Scan
Walk through any space with PortalCam for automatic 3D capture
Automated Processing
Advanced algorithms automatically generate photorealistic 3D models
View, Edit, Share
Modify, annotate, and share spatial content across teams and platforms
Deploy Everywhere
Seamless integration with existing 3D workflows and applications
Applications
Real Estate
Film & Virtual Production
Gaming
Cultural Heritage
VR/AR
Personal Archives
Technical Specifications
| Physical Specifications | |||
| Power Consumption | <19W | Body Weight | 870g (1.9 lbs) without tripod |
| Dimensions | 130mm × 90mm × 77mm (5.1 × 3.5 × 3.0 in) | Housing Material | Aerospace-grade Aluminum Alloy |
| LiDAR System | |||
| Laser Classification | Class 1 / 940nm | Scanning Range | 0.1m - 30m (4 in - 98 ft) @ 10% reflectivity 60m (197 ft) @ 90% reflectivity |
| Field of View | 180° azimuth × 180° elevation | Point Rate | 856,000 points/second |
| Camera System | |||
| Camera Configuration | 4-camera array 2 × Fisheye, 2 × Front |
Image Resolution | 4000 × 3000 px |
| Sensor Size | 1/2" CMOS | Shutter Type | Rolling Shutter |
| Fisheye Camera FOV | 200° × 200° (each) | Front Camera FOV | 100° × 85° (each) |
| Connectivity & Storage | |||
| Data Interface | USB 3.0 | Internal Storage | 512GB |
| GPS Module | Supported | WiFi | 802.11 a/b/g/n/ac/ax 2.4GHz: 2412-2472MHz 5GHz: 5180-5240MHz 5GHz: 5745-5825MHz |
| Bluetooth | 5.2 | Wireless Range | 20m (65.6 ft) |
| Power System | |||
| Battery Type | Removable Li-ion | Battery Capacity | 23.04Wh |
| Operating Time | 60 minutes (continuous scanning) | Charging Time (25°C/77°F) | 0-90%: 70 minutes 0-100%: 90 minutes |
| Operating Temperature | -20°C - 45°C (-4°F - 113°F) (indirect sunlight only) | Charging Temperature | 5°C - 30°C (41°F - 86°F) |
| Power Adapter | |||
| Input | 100-240V, 50-60Hz, 1.5A, 80VA | Output | 20V, 2.0A |
| Rated Power | PD Protocol, >25W | Standard | USB-C 45W single port |
| Dual port | 25W + 20W | ||
Accessories
Backpack with Protective Insert: Included
Extension Pole (2m/6.6 ft): Optional
External Storage (512GB/1TB SSD): Optional
Product Summary
PortalCam - The First True Spatial Camera PortalCam is the first handheld device that captures reality as interactive 3D environments using breakthrough 3D Gaussian Splatting technology. It combines LiDAR, a four-camera array, and automated processing to create photorealistic spatial models you can ...
